BMU Lithium Battery BYD Premium Battery Box Premium LVS & LVL V2 – 13172499-00

BMU Lithium Battery BYD Premium Battery Box Premium LVS & LVL V2 – 13172499-00

€129,00 EUR
€199,00 EUR €129,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

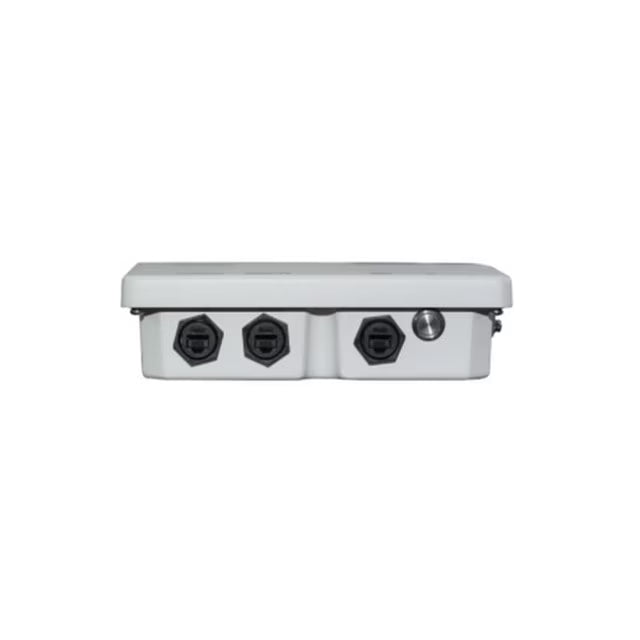

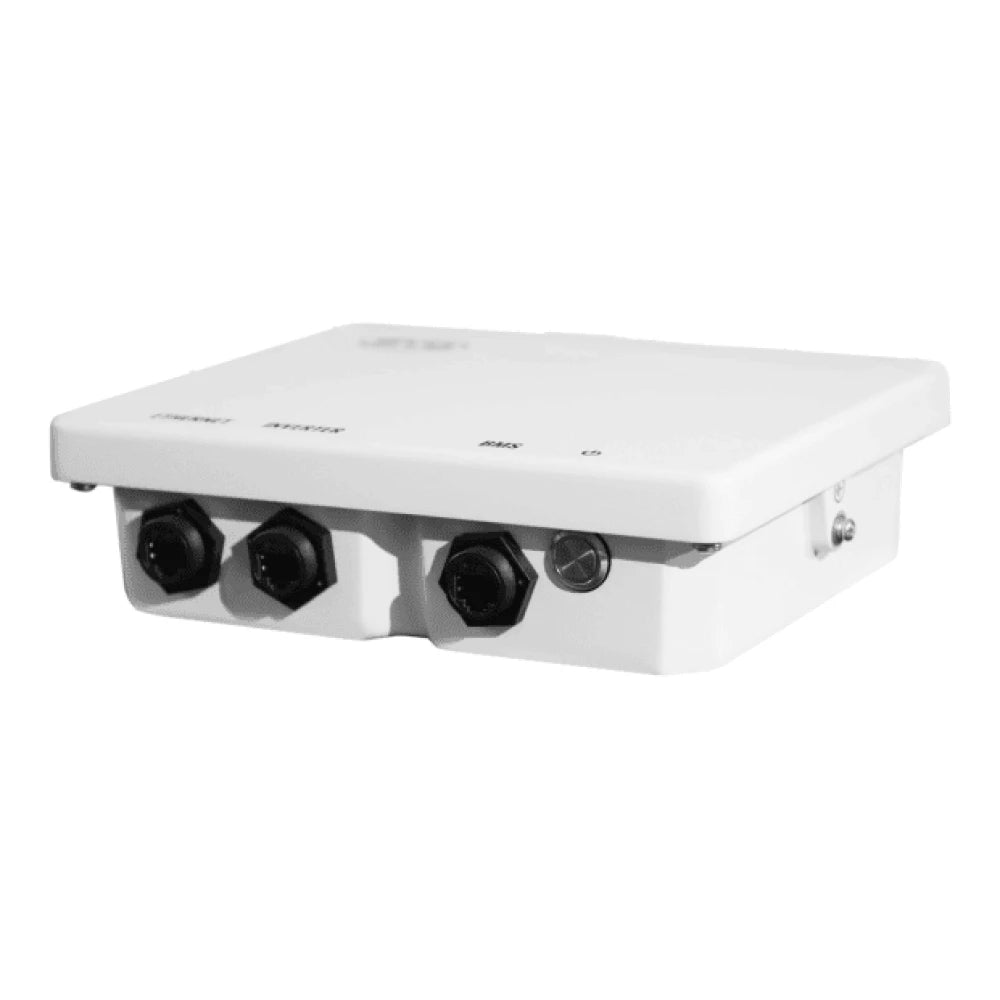

BYD Battery-Box Premium LV BMU V2 – Control & Communication Unit for LVS/LVL (MPN: 13172499-00)

The BYD BMU V2 (Battery Management Unit) is the "brain" of the Battery-Box Premium LV systems. It coordinates charging/discharging, establishes communication with the inverter, and enables configuration, diagnostics, and firmware updates via Be Connect 2.0 . It is ideal for new installations and as a spare part in LVS stacks (4.0–24.0 kWh) and LVL 15.4 kWh .

Highlights

  • Compatible with BYD Battery-Box Premium LVS (4.0–24.0 kWh) and LVL 15.4 kWh .
  • Ethernet & WLAN (Be Connect 2.0) for monitoring, parameterization and firmware updates.
  • CAN interface to the inverter (according to current BYD specifications); max. 10 m cable length, shielded CAT5 or better.
  • Compact & easy to install (wall or rack mounting; 250 × 122 × 50 mm).
  • Robust system management : clear LED status indicators, safe shutdown/start procedures.

Typical applications

  • New systems with BYD Battery-Box Premium LVS or LVL in grid-parallel, backup or island operation (depending on the inverter).
  • Retrofitting/replacement of defective or older BMU variants in existing LVS/LVL systems.

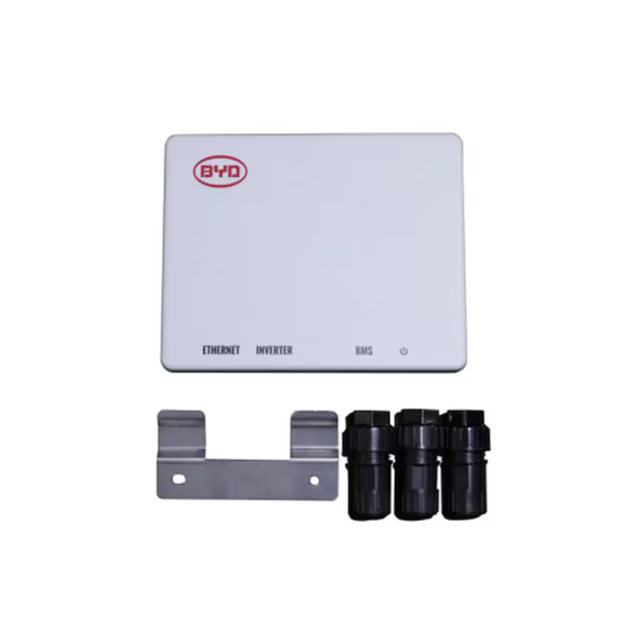

Scope of delivery

  • 1 × BYD BMU V2 (Battery Management Unit)
  • Quick guide

Required accessories (not included)

  • LVS: PDU base (Power Distribution Unit) and at least one LVS battery module (4.0 kWh)
  • LVL: LVL 15.4 kWh battery module
  • Compatible inverter according to BYD approval list, shielded communication cables

Technical data (BMU)

communication Ethernet (LAN), WLAN (Be Connect 2.0), CAN (to the inverter)
supply 40-60 V (via battery box), approx. 200 mA
Dimensions (L × W × H) 250 × 122 × 50 mm
Weight approx. 3 kg
Protection class IP20 †
Vicinity –10 … +50 °C; 5–85 % RH (non-condensing)
Cable information Straight patch cable to the battery box; to the inverter max. 10 m, CAT5 shielded

Commissioning & practical tips

  • Connect the BMU, Battery Box, and inverter correctly; the BMU's Wi-Fi switches off after ~5 hours (press the LED button once to reactivate).
  • WLAN reset: Press the LED button three times briefly (~1 s each) within 6 s.
  • Important: Do not ground the BMU/Battery Box to the inverter; follow the instructions in the BYD manual.

Compatibility: Only for BYD Battery-Box Premium LV systems (LVS/LVL). Not for high-voltage series (HVS/HVM/HVL US).
† Depending on the hardware revision, IP55 specifications may be found in dealer data; the specifications of the installed device variant according to the type plate/current BYD documentation are decisive.

Article & service data
MPN: 13172499-00 | Be Connect 2.0 app for monitoring/updates
