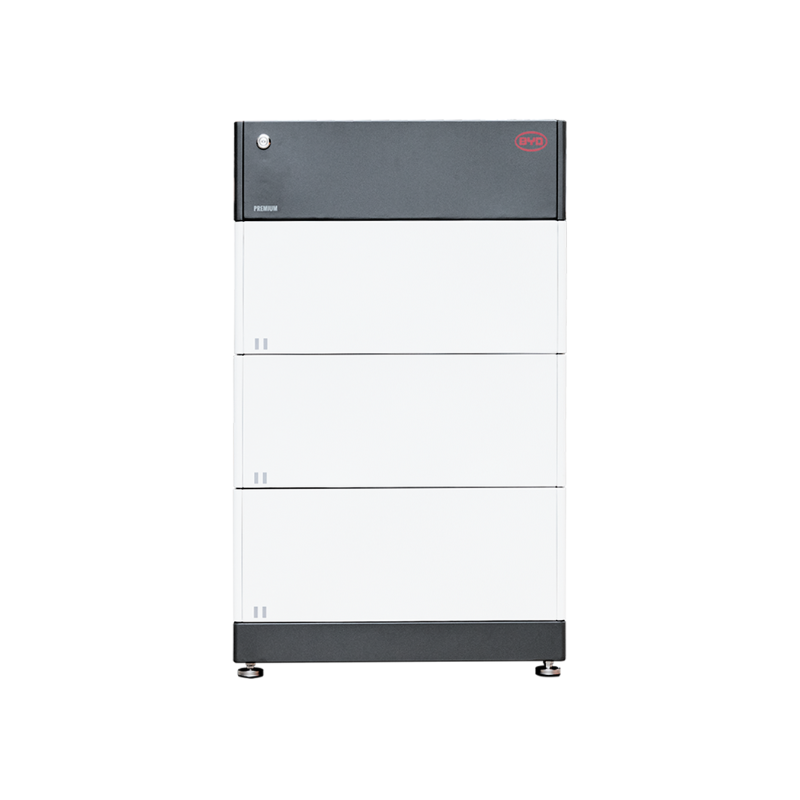

BYD B-Box HVM Premium 11 kWh lithium battery

BYD Battery-Box Premium HVM

The Battery-Box Premium HVM consists of three to eight HVM battery modules connected in series, achieving a usable capacity of 8.3 to 22.1 kWh. By connecting up to three identical Battery-Box Premium HVM systems in parallel, the capacity can be expanded to up to 66.2 kWh. The modular design allows for future expansion with additional modules or parallel HVM towers.

Technical data:

• Number of modules: 4
• Usable energy: 11.04 kWh
• Maximum output current: 50 A
• Output peak current: 75 A (3 seconds)
• Nominal voltage: 153.6 V
• Operating voltage: 120 – 177 V
• Dimensions (HxWxD): 995 x 585 x 298 mm
• Weight: 169 kg
• Operating temperature: -10 to +50 °C
• Battery type: Lithium iron phosphate (LiFePO4)
• Communication: CAN / RS485
• Protection class: IP55
• Efficiency during charging and discharging: ≥ 96%
• Installation: Indoor and outdoor
• Mounting method: Stand
• Certifications: VDE2510-50, IEC62619, CEC, CE, UN38.3

Applications:

• On-Grid
• On-Grid with Backup
• Island systems (off-grid)

Guarantee:

10 years (Certain conditions apply. See BYD Battery-Box Premium Limited Warranty Terms)

Special features:

• Powerful emergency and backup power function as well as off-grid capability
• Award-winning efficiency through true series connection
• Patented modular plug-in design without internal cabling for maximum flexibility and ease of use
• Cobalt-free lithium iron phosphate (LFP) battery for maximum safety, service life and performance
• Compatible with leading 1- and 3-phase inverters
• Two different modules to cover the entire system size range
• Compliance with the highest safety standards (e.g. VDE 2510-50)
