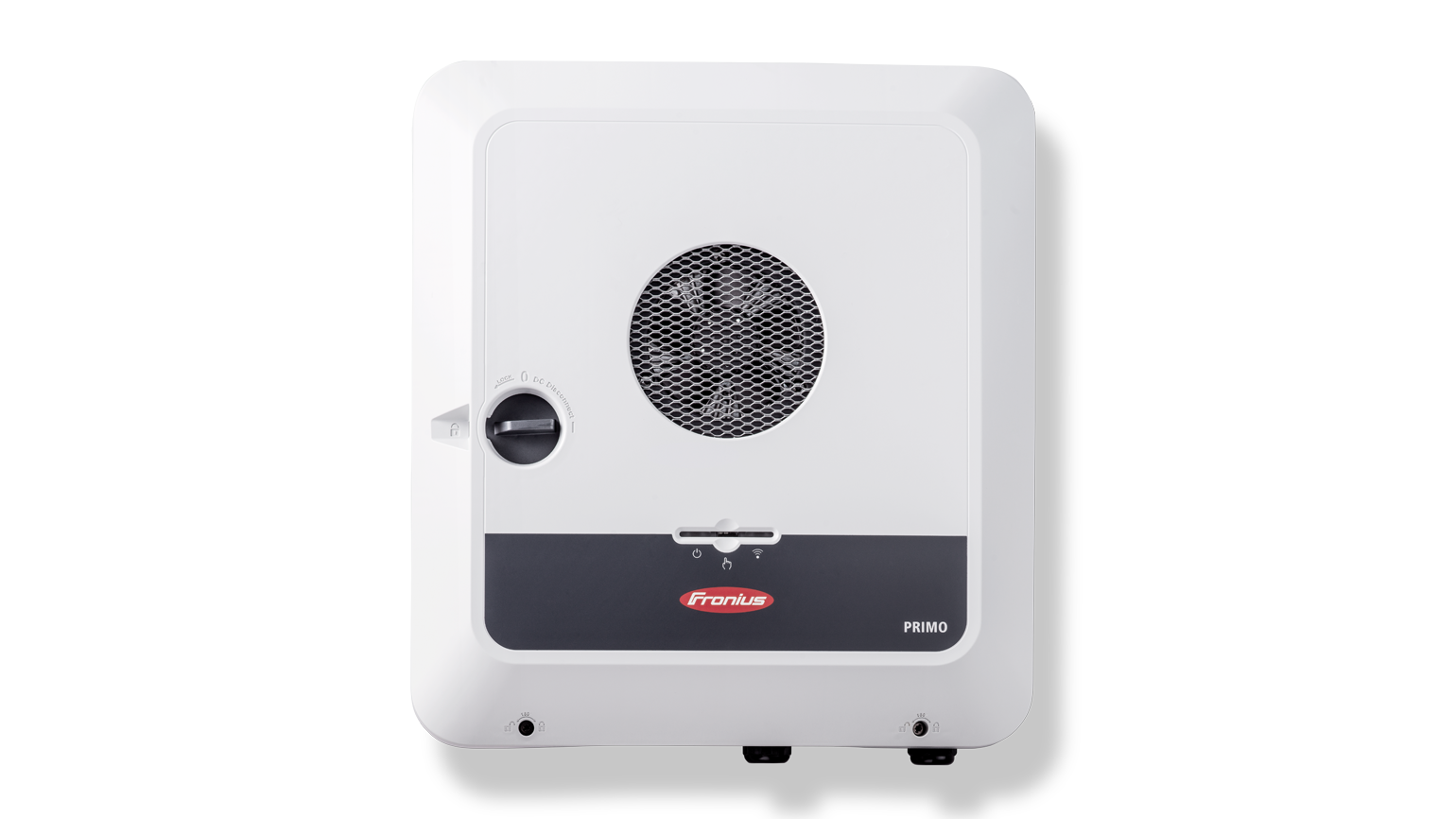

Fronius Primo GEN24 5.0 Plus – single-phase hybrid inverter with 5.0 kW output

5% discount until May 8th - free shipping in Spain (will be automatically deducted in the shopping cart)

The Fronius Primo GEN24 5.0 Plus is a single-phase hybrid inverter with an output of 5.0 kW, ideal for residential photovoltaic systems. Thanks to the integrated PV Point, it provides basic emergency power supply and, with an additional battery and transfer switch, enables full backup power supply . Fronius International

Technical data:

• AC rated power: 5,000 W

• Max. output power: 5,000 VA

• Max. AC output current: 27.5 A

• Mains connection: 1~ NPE 220/230 V

• AC voltage range: 155–270 V

• Frequency range: 45–65 Hz

• Max. efficiency: 97.6%

• European efficiency: up to 97.2% (depending on input voltage)

• Dimensions (W x H x D): 530 x 474 x 165 mm

• Weight: 15.40 kg

• Protection class: IP66 (suitable for indoor and outdoor installation)

• Operating temperature range: -40 °C to +60 °C

• Humidity: 0–100%

• Max. altitude: 4,000 m above sea level

• Cooling: Active air cooling

• Noise level: 42 dB(A)

• Special features:

• PV Point: Integrated basic emergency power supply via a powered socket

• Full Backup: Possibility of complete emergency power supply in case of power failure in combination with battery and switching device

• Multi Flow Technology: Parallel energy flows from PV modules and battery to optimize self-consumption

• Dynamic Peak Manager: Intelligent MPP tracker to maximize energy yield even in partial shading

• SuperFlex Design: Flexible system design thanks to two MPP trackers and a wide input voltage range

• Communication: Integrated WLAN, Ethernet, RS485, Modbus TCP/RTU, Fronius Solar API (JSON)

Please note:
Data modules (such as the Fronius Datamanager 2.0 ) are not included in the scope of delivery. These must be purchased separately to enable a network connection and monitoring of your system via Fronius Solar.web or another platform.
