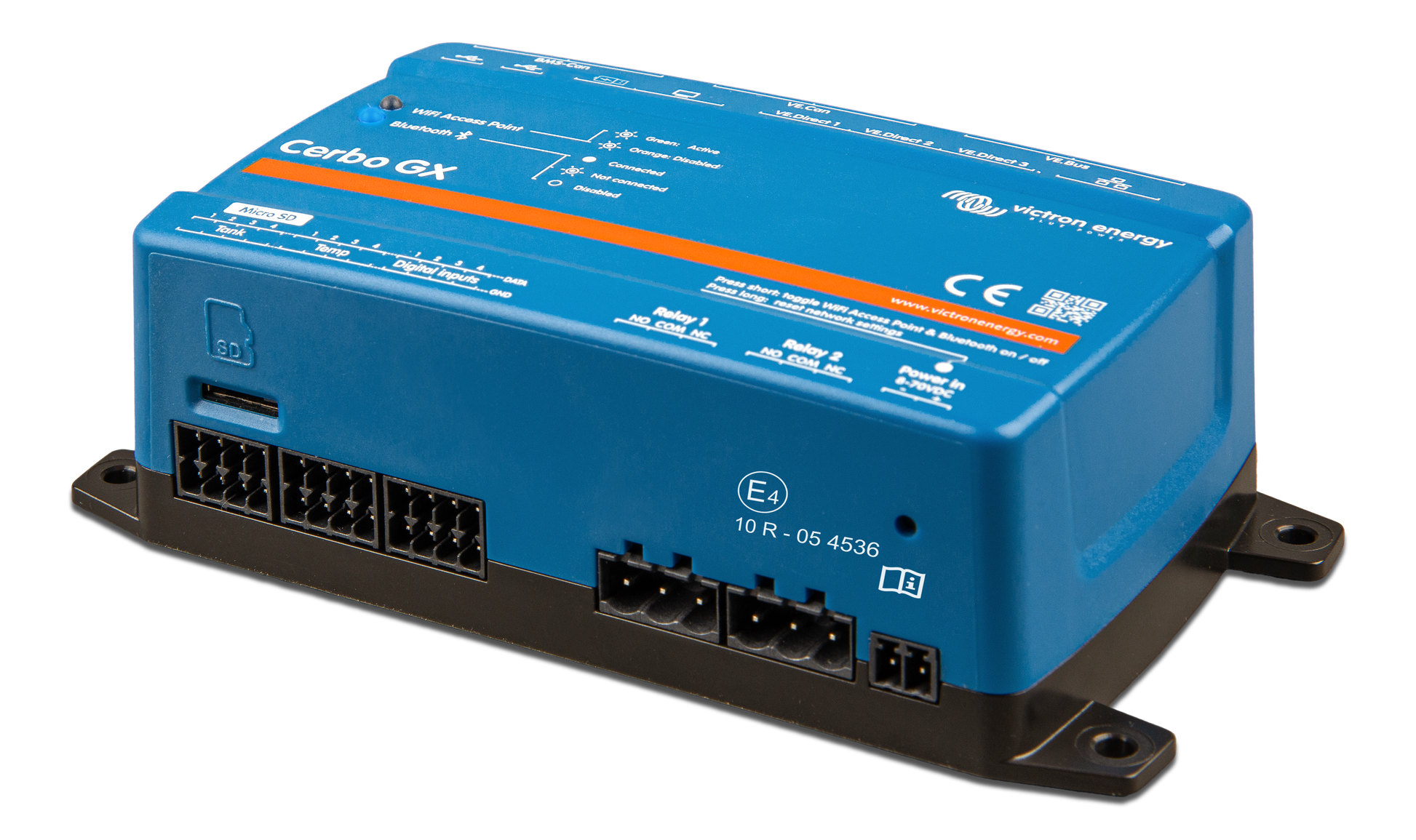

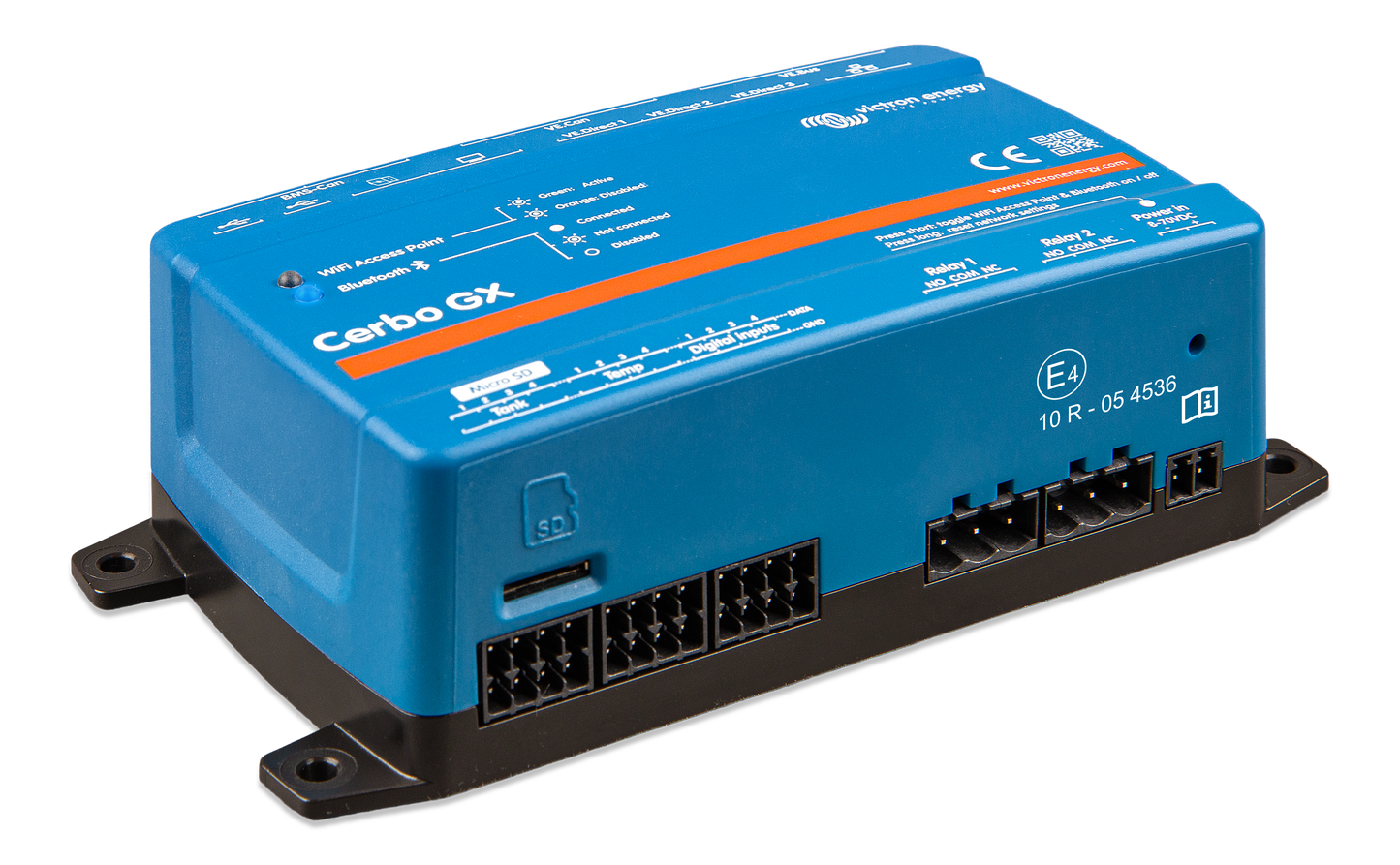

Victron Energy Cerbo GX – Communication module for Victron systems

Victron Cerbo GX – communication center for your energy system

With the Victron Cerbo GX, you can get the most out of your PV or off-grid system. This powerful communication module enables central monitoring and control of all Victron devices – such as inverters, chargers, MPPT controllers, battery monitors, and much more. Ideal for residential systems, mobile homes, boats, and industrial applications.

✅ Complete system monitoring

Monitor all relevant energy flows in real time – locally via an optional GX Touch Display or remotely via the free Victron Remote Portal (VRM) . The Cerbo GX acts as the heart of your energy system.

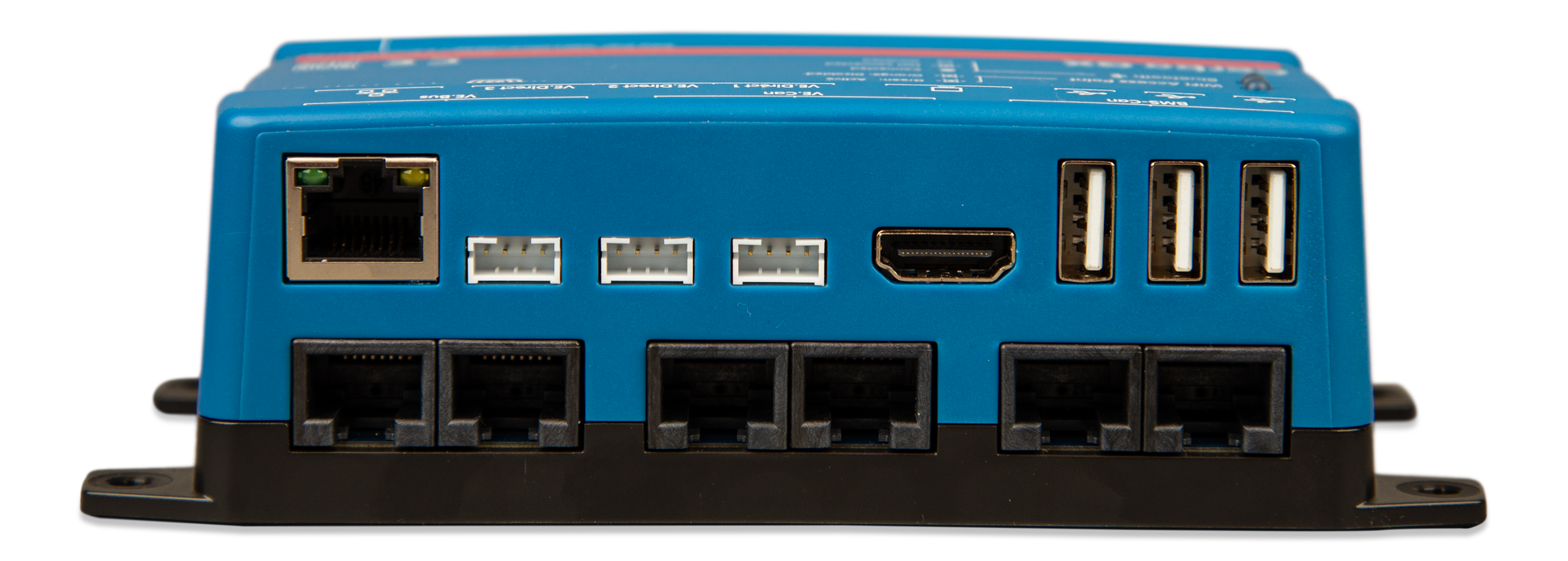

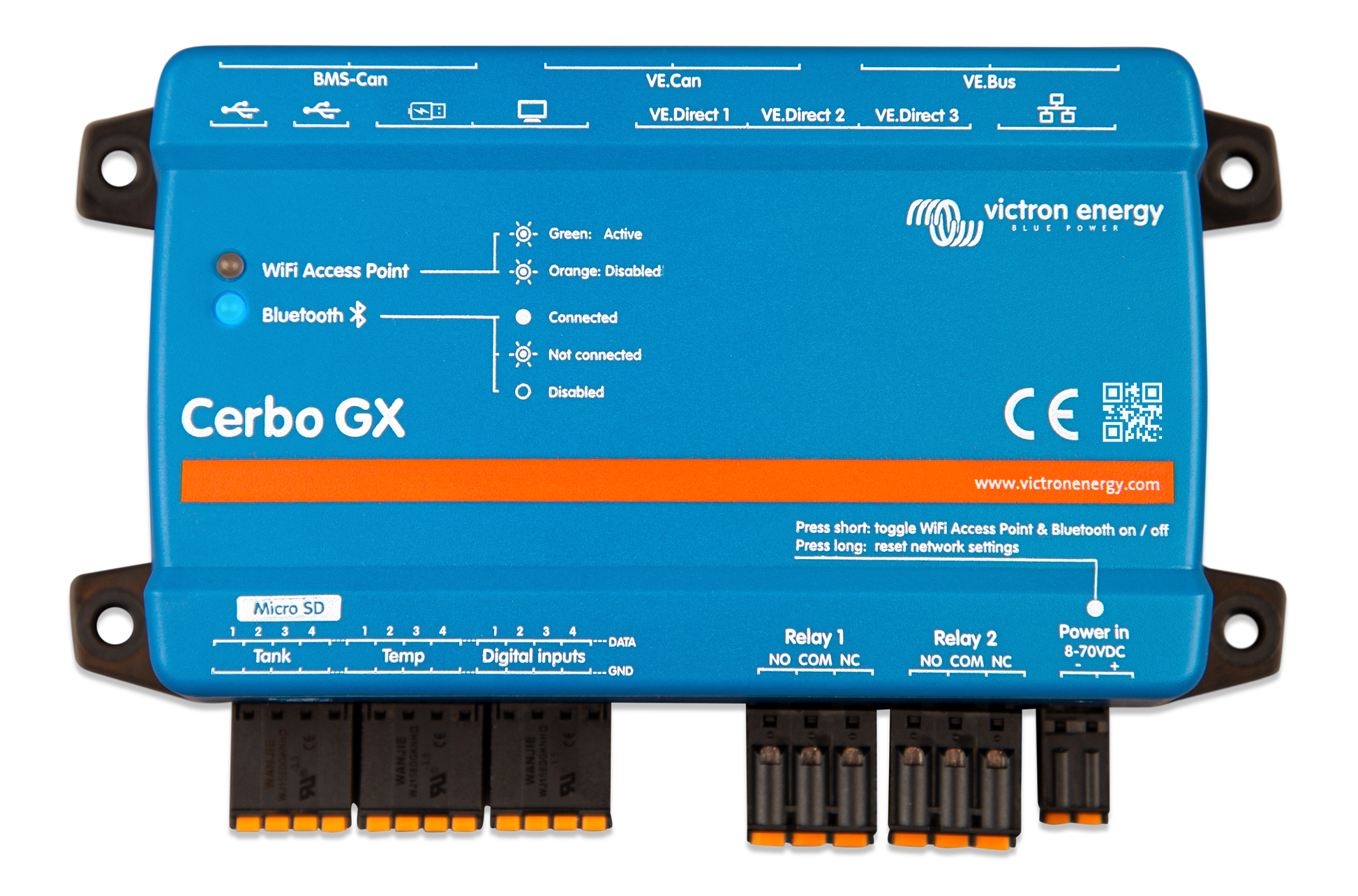

🔌 Comprehensive connection options

• 3× VE.Direct – for example, MPPT controllers
• 2× VE.Bus – for MultiPlus & Quattro
• 1× VE.Can – for example, BMS or batteries (non-isolated)
• 1× BMS-Can – for lithium systems
• Ethernet, WLAN & Bluetooth – for flexible communication
• USB ports – for storage or accessories
• Digital inputs, relay outputs – for external controls (e.g. generator start)

🔧 Easy integration & flexible installation

Compact design, DIN rail adapter optionally available. Configuration via web browser or touchscreen (sold separately).

⚙️ Technical data (excerpt)

• Power supply: 8–70 V DC
• Dimensions: 154 × 78 × 48 mm
• Weight: 0.42 kg
• Model number: BPP900450100
• EAN: 8719076048763

📦 Scope of delivery

• Victron Cerbo GX

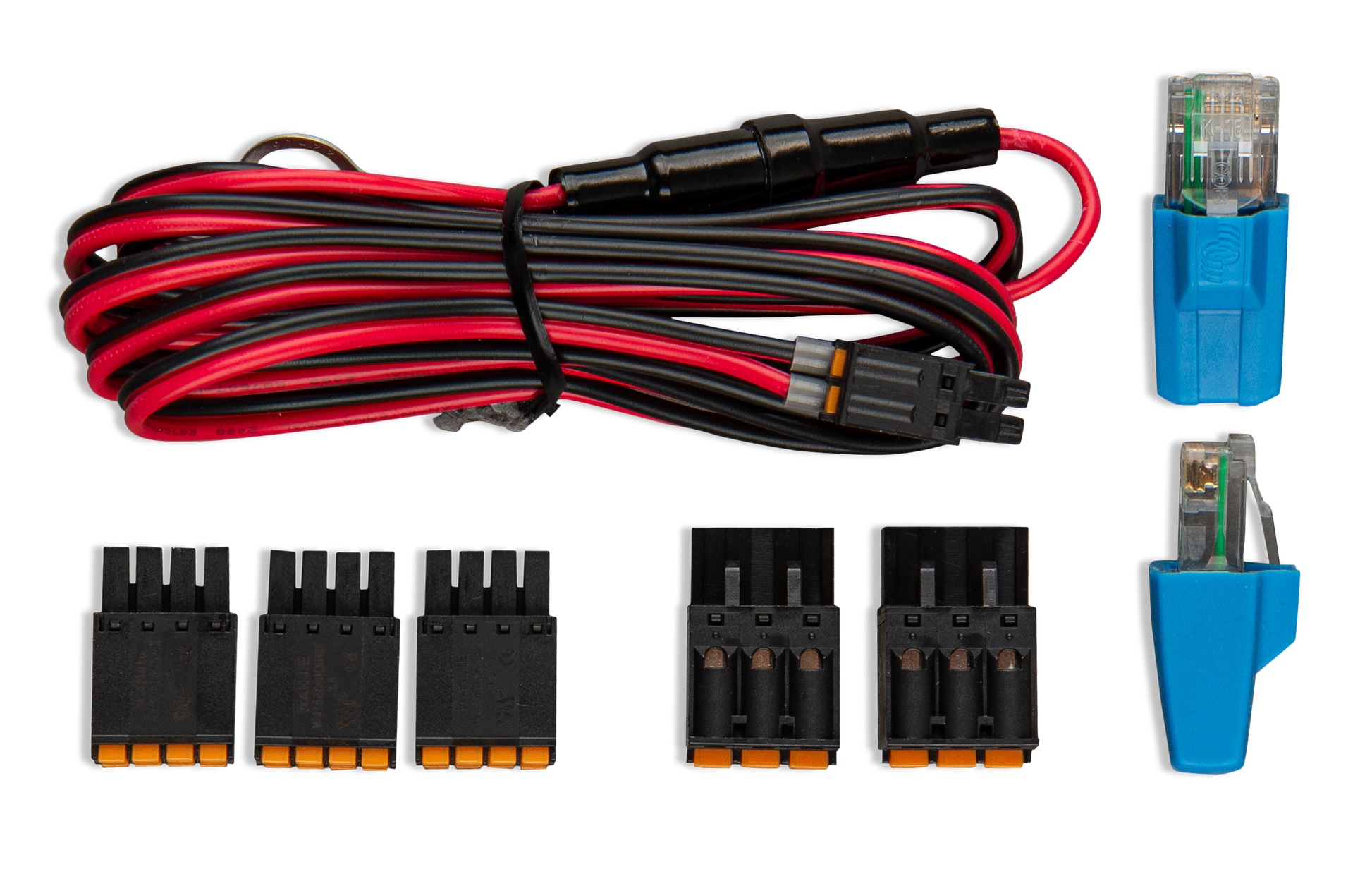

• Connection accessories
• Operating instructions

💡 Especially suitable for

• Island systems (off-grid)
• Backup systems
• Motorhomes & Boats
• Commercial systems with Victron components

👉 Order now and have full control over your energy – locally and worldwide.
